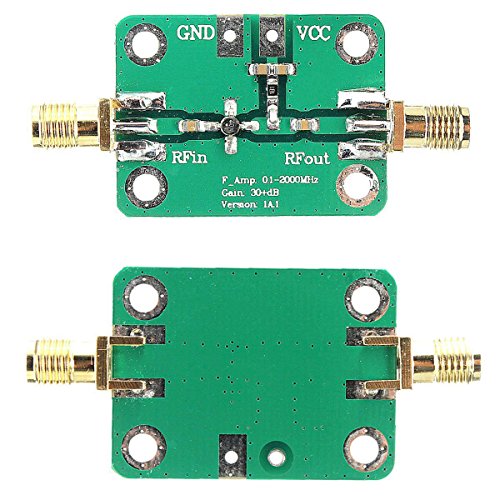

HiLetgo 0.1-2000MHz RF WideBand Amplifier 30dB High Gain Low Noise LNA Amplifier
HiLetgo 0.1-2000MHz RF WideBand Amplifier 30dB High Gain Low Noise LNA Amplifier looks good in design, features and function. The best function of this product is really simple to clean and control. The design and layout are very fantastic that make it really appealing and beauty. Many individuals feel attracted to purchase and utilize it. Every feature is developed to fulfill people require as its function too. It is stunning and ideal product for simple setup, upkeep, and control device.
| Asin | : | B01N2NJSGV |
| Category | : | Electronics |
| Color | : | Green |
| Brand | : | HiLetgo |
| Sales Rank | : |
Features HiLetgo 0.1-2000MHz RF WideBand Amplifier 30dB High Gain Low Noise LNA Amplifier
Honestly, the product is extremely smart function, healthy and safety for users. HiLetgo 0.1-2000MHz RF WideBand Amplifier 30dB High Gain Low Noise LNA Amplifier is very helpful to finish all user requires. The design is very light, appealing and elegant one. With the newest innovation, this product can meet all individuals expectation with fantastic function and function. It is easy to buy from the dedicated vendor. Individuals can get and acquire it online on the web by this site. The vendor is very useful to serve and send out the product on time shipment. It is extremely exceptional service for the top quality product. The one characteristic to consider about this product that there is no one felt trouble and dissatisfied with it. It works perfectly as the ads said previously.
Descriptions HiLetgo 0.1-2000MHz RF WideBand Amplifier 30dB High Gain Low Noise LNA Amplifier
This is also an important factor to consider, as consumer self-confidence in certain companies over others dictates that more of their products have been purchased and used with satisfaction. You will surely have more security buying from one of these popular suppliers.After you have done all the search, there is one final thing to check out and perhaps use to complete your selection process. Suppose you have narrowed your decision right down to 3 products , but are uncertain how to pick the one to buy.
Features:
-This product with wide frequency range, high gain, low noise figure
-This product can be applied to various rf receive front-end and increases communication distance
-Used for Short wave, FM radio, remote control receiver, such as cable TV signal amplifier need low noise rf signal amplification
Specifications:
Operating frequency0.1-2000MHz
Amplifier gain
F=0.1MHz, gain=32dB
F=500Mhz, gain=31dB
F=1000MHz, gain=29dB
F=1500Mhz, gain=25dB
F=2000MHz, gain=20dB
Maximum power output+10dBm 10mW
Power supply voltage: 6-12 VDC
System impedance50
Tips:
1.When working frequency is less than 500 MHZit get well gain flatness, can make it less than 1dB after careful adjustment. The lower frequency the higher gain consistency.
2.Amplifier working frequency of the lower limit is subject to input and output capacitor, the default value is 0.1 uF, working to 0.1 MHz. Increase the input and output capacitance appropriately, can extend the cut-off frequency, such as 10uF capacitance can work to 5KHz.
3.When the power supply voltage changes in 5-8 v, it can be used as a variable gain amplifier, gain increases with the increase of the power supply voltage, which suitable for radio frequency receive front-end circuit, using DA control power supply voltage, to control the gain of the amplifier, automatic gain control
4.When the power supply voltage in the 8-10 v, the low frequency end gain up to 30 db, at this time the amplifier has a low noise coefficient and good stability.
5.When the voltage is 12 v, reach maximum gain, the low frequency end gain of 32.5 dB.
Package included:
1* 0.1-2000MHz RF Wide Band Amplifier Module 30dB High Gain
-This product with wide frequency range, high gain, low noise figure
-This product can be applied to various rf receive front-end and increases communication distance
-Used for Short wave, FM radio, remote control receiver, such as cable TV signal amplifier need low noise rf signal amplification
Specifications:
Operating frequency0.1-2000MHz
Amplifier gain
F=0.1MHz, gain=32dB
F=500Mhz, gain=31dB
F=1000MHz, gain=29dB
F=1500Mhz, gain=25dB
F=2000MHz, gain=20dB
Maximum power output+10dBm 10mW
Power supply voltage: 6-12 VDC
System impedance50
Tips:
1.When working frequency is less than 500 MHZit get well gain flatness, can make it less than 1dB after careful adjustment. The lower frequency the higher gain consistency.
2.Amplifier working frequency of the lower limit is subject to input and output capacitor, the default value is 0.1 uF, working to 0.1 MHz. Increase the input and output capacitance appropriately, can extend the cut-off frequency, such as 10uF capacitance can work to 5KHz.
3.When the power supply voltage changes in 5-8 v, it can be used as a variable gain amplifier, gain increases with the increase of the power supply voltage, which suitable for radio frequency receive front-end circuit, using DA control power supply voltage, to control the gain of the amplifier, automatic gain control
4.When the power supply voltage in the 8-10 v, the low frequency end gain up to 30 db, at this time the amplifier has a low noise coefficient and good stability.
5.When the voltage is 12 v, reach maximum gain, the low frequency end gain of 32.5 dB.
Package included:
1* 0.1-2000MHz RF Wide Band Amplifier Module 30dB High Gain
